Availability: | |
---|---|
Quantity: | |

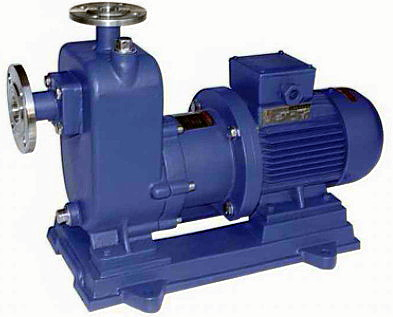

ZCQ type self-priming magnetic drive pump is the new product tested and researched on the basis of CQ type magnetic power drive pump and absorbed the advanced international technique by the technicians of our company according to the requirement of our customers.
Advantages
1. ZCQ stainless steel self-priming centrifugal pump anti corrosion magnetic high suction water pump is full sealed, non-leakage and corrosion resistant.
2. This magnetic pump is compact in structure, with small volume, good corrosion resistance ability, low noise, reliable running performance and easy to maintain.
3. It is completely eliminate of the general drive shaft seal centrifugal pumps’ problem of running, running, dripping, leaking phenomenon.
4. To deliver acid, lye, oils, rare & precious liquid, venom, volatile liquid or works in circulating fluid equipment. Even wonderful to pump the liquid that is inflammable, explosive or volatile.
Product details:
Working Principle: | Centrifugal, Magnetic, Self priming |
Main applications: | Chemical, water, oil |
Driver: | Electric motor |
Power Specs: | 380/415 V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Stainless steel/Stainless steel |
Shaft seal type: | Static sealing |
Suction ablity | 3min/4m(3min/9.8ft ) |
Maximum drive rating: | 75KW(100HP) |
Maximum caliber: | 100mm(4inch) |
Maximum discharge-side pressure: | 0.86MPa(8.6bar) |
Maximum head: | 86m(282.1ft) |
Flow rate range: | 1-120m3/h(4.4-528US.GPM) |
ZCQ type self-priming magnetic drive pump is the new product tested and researched on the basis of CQ type magnetic power drive pump and absorbed the advanced international technique by the technicians of our company according to the requirement of our customers.
Advantages
1. ZCQ stainless steel self-priming centrifugal pump anti corrosion magnetic high suction water pump is full sealed, non-leakage and corrosion resistant.
2. This magnetic pump is compact in structure, with small volume, good corrosion resistance ability, low noise, reliable running performance and easy to maintain.
3. It is completely eliminate of the general drive shaft seal centrifugal pumps’ problem of running, running, dripping, leaking phenomenon.
4. To deliver acid, lye, oils, rare & precious liquid, venom, volatile liquid or works in circulating fluid equipment. Even wonderful to pump the liquid that is inflammable, explosive or volatile.
Product details:
Working Principle: | Centrifugal, Magnetic, Self priming |
Main applications: | Chemical, water, oil |
Driver: | Electric motor |
Power Specs: | 380/415 V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 100°C(212°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Stainless steel/Stainless steel |
Shaft seal type: | Static sealing |
Suction ablity | 3min/4m(3min/9.8ft ) |
Maximum drive rating: | 75KW(100HP) |
Maximum caliber: | 100mm(4inch) |
Maximum discharge-side pressure: | 0.86MPa(8.6bar) |
Maximum head: | 86m(282.1ft) |
Flow rate range: | 1-120m3/h(4.4-528US.GPM) |
Model | Capacity | Head | Speed | Shaft P | EFF. | Suction ablity | Motor P(KW) | ||
Medium density(g/cm3) | |||||||||
(m3/h) | (m) | (r/min) | (KW) | (%) | (m3/min) | <1 | <1.3 | <1.84 | |
ZCQ25-20-115 | 1 | 17 | 2900 | 0.23 | 20 | 4 | 0.75 | 0.75 | 0.75 |
1.6 | 15 | 0.24 | 27 | ||||||
2 | 12.5 | 0.24 | 28 | ||||||
ZCQ32-25-115 | 1.9 | 17 | 2900 | 0.4 | 22 | 4 | 0.75 | 0.75 | 1.1 |
3.2 | 15 | 0.45 | 29 | ||||||
3.8 | 12.5 | 0.43 | 30 | ||||||
ZCQ32-25-145 | 1.9 | 27.5 | 2900 | 0.68 | 21 | 4 | 1.1 | 1.1 | 1.5 |
3.2 | 25 | 0.78 | 28 | ||||||
3.8 | 22 | 0.79 | 29 | ||||||
ZCQ40-32-132 | 3.8 | 25 | 2900 | 0.99 | 26 | 4 | 1.1 | 1.5 | 2.2 |
6.3 | 22 | 1.11 | 34 | ||||||
7.5 | 19 | 1.11 | 35 | ||||||
ZCQ40-32-160 | 3.8 | 34 | 2900 | 1.41 | 25 | 4 | 2.2 | 2.2 | 3 |
6.3 | 32 | 1.57 | 35 | ||||||
7.5 | 29 | 1.65 | 36 | ||||||
ZCQ50-32-125 | 7.5 | 22 | 2900 | 1.55 | 29 | 4 | 2.2 | 3 | 4 |
12.5 | 20 | 1.7 | 40 | ||||||
15 | 18 | 1.79 | 41 | ||||||
ZCQ50-32-160 | 7.5 | 34 | 2900 | 2.57 | 27 | 4 | 3 | 4 | 5.5 |
12.5 | 32 | 2.87 | 38 | ||||||
15 | 29 | 3.04 | 39 | ||||||
ZCQ50-32-200 | 7.5 | 52.5 | 2900 | 5.1 | 21 | 4 | 7.5 | 7.5 | 11 |
12.5 | 50 | 5.67 | 30 | ||||||
15 | 48 | 6.33 | 31 | ||||||
ZCQ65-50-125 | 15 | 22 | 2900 | 2.81 | 32 | 4 | 4 | 5.5 | 7.5 |
25 | 20 | 3.17 | 43 | ||||||
30 | 18 | 3.34 | 44 | ||||||
ZCQ65-50-160 | 15 | 34 | 2900 | 4.63 | 30 | 4 | 5.5 | 7.5 | 11 |
25 | 32 | 5.31 | 41 | ||||||
30 | 28 | 5.45 | 42 | ||||||
ZCQ65-40-200 | 7.5 | 53 | 2900 | 8.33 | 26 | 4 | 11 | 15 | 18.5 |
12.5 | 50 | 9.73 | 35 | ||||||
15 | 47 | 10.67 | 36 | ||||||
ZCQ80-65-125 | 30 | 22 | 2900 | 4.73 | 38 | 4 | 5.5 | 7.5 | 11 |
50 | 20 | 5.56 | 49 | ||||||
60 | 18 | 5.39 | 50 | ||||||
ZCQ80-65-160 | 30 | 34 | 2900 | 8.29 | 33 | 4 | 11 | 15 | 18.5 |
50 | 32 | 9.68 | 45 | ||||||
60 | 28 | 9.95 | 46 | ||||||
ZCQ80-50-200 | 30 | 53 | 2900 | 12.37 | 35 | 4 | 18.5 | 22 | 30 |
50 | 50 | 14.8 | 46 | ||||||
60 | 47 | 16.34 | 47 | ||||||
ZCQ80-50-250 | 30 | 84 | 2900 | 21.45 | 32 | 4 | 30 | 37 | 45 |
50 | 80 | 24.76 | 44 | ||||||
60 | 75 | 27.23 | 45 | ||||||
ZCQ100-80-160 | 60 | 33.5 | 2900 | 12.16 | 45 | 4 | 18.5 | 22 | 30 |
100 | 32 | 16.14 | 54 | ||||||
120 | 27 | 16.04 | 55 | ||||||
ZCQ100-65-200 | 60 | 54 | 2900 | 22.62 | 39 | 4 | 30 | 37 | 45 |
100 | 50 | 27.23 | 50 | ||||||
120 | 47 | 30.12 | 51 | ||||||
ZCQ100-65-250 | 60 | 86 | 2900 | 39.03 | 36 | 4 | 45 | 55 | 75 |
100 | 80 | 46.35 | 47 | ||||||
120 | 74.5 | 50.72 | 48 |
Model | Capacity | Head | Speed | Shaft P | EFF. | Suction ablity | Motor P(KW) | ||
Medium density(g/cm3) | |||||||||
(m3/h) | (m) | (r/min) | (KW) | (%) | (m3/min) | <1 | <1.3 | <1.84 | |
ZCQ25-20-115 | 1 | 17 | 2900 | 0.23 | 20 | 4 | 0.75 | 0.75 | 0.75 |
1.6 | 15 | 0.24 | 27 | ||||||
2 | 12.5 | 0.24 | 28 | ||||||
ZCQ32-25-115 | 1.9 | 17 | 2900 | 0.4 | 22 | 4 | 0.75 | 0.75 | 1.1 |
3.2 | 15 | 0.45 | 29 | ||||||
3.8 | 12.5 | 0.43 | 30 | ||||||
ZCQ32-25-145 | 1.9 | 27.5 | 2900 | 0.68 | 21 | 4 | 1.1 | 1.1 | 1.5 |
3.2 | 25 | 0.78 | 28 | ||||||
3.8 | 22 | 0.79 | 29 | ||||||
ZCQ40-32-132 | 3.8 | 25 | 2900 | 0.99 | 26 | 4 | 1.1 | 1.5 | 2.2 |
6.3 | 22 | 1.11 | 34 | ||||||
7.5 | 19 | 1.11 | 35 | ||||||
ZCQ40-32-160 | 3.8 | 34 | 2900 | 1.41 | 25 | 4 | 2.2 | 2.2 | 3 |
6.3 | 32 | 1.57 | 35 | ||||||
7.5 | 29 | 1.65 | 36 | ||||||
ZCQ50-32-125 | 7.5 | 22 | 2900 | 1.55 | 29 | 4 | 2.2 | 3 | 4 |
12.5 | 20 | 1.7 | 40 | ||||||
15 | 18 | 1.79 | 41 | ||||||
ZCQ50-32-160 | 7.5 | 34 | 2900 | 2.57 | 27 | 4 | 3 | 4 | 5.5 |
12.5 | 32 | 2.87 | 38 | ||||||
15 | 29 | 3.04 | 39 | ||||||
ZCQ50-32-200 | 7.5 | 52.5 | 2900 | 5.1 | 21 | 4 | 7.5 | 7.5 | 11 |
12.5 | 50 | 5.67 | 30 | ||||||
15 | 48 | 6.33 | 31 | ||||||
ZCQ65-50-125 | 15 | 22 | 2900 | 2.81 | 32 | 4 | 4 | 5.5 | 7.5 |
25 | 20 | 3.17 | 43 | ||||||
30 | 18 | 3.34 | 44 | ||||||
ZCQ65-50-160 | 15 | 34 | 2900 | 4.63 | 30 | 4 | 5.5 | 7.5 | 11 |
25 | 32 | 5.31 | 41 | ||||||
30 | 28 | 5.45 | 42 | ||||||
ZCQ65-40-200 | 7.5 | 53 | 2900 | 8.33 | 26 | 4 | 11 | 15 | 18.5 |
12.5 | 50 | 9.73 | 35 | ||||||
15 | 47 | 10.67 | 36 | ||||||
ZCQ80-65-125 | 30 | 22 | 2900 | 4.73 | 38 | 4 | 5.5 | 7.5 | 11 |
50 | 20 | 5.56 | 49 | ||||||
60 | 18 | 5.39 | 50 | ||||||
ZCQ80-65-160 | 30 | 34 | 2900 | 8.29 | 33 | 4 | 11 | 15 | 18.5 |
50 | 32 | 9.68 | 45 | ||||||
60 | 28 | 9.95 | 46 | ||||||
ZCQ80-50-200 | 30 | 53 | 2900 | 12.37 | 35 | 4 | 18.5 | 22 | 30 |
50 | 50 | 14.8 | 46 | ||||||
60 | 47 | 16.34 | 47 | ||||||
ZCQ80-50-250 | 30 | 84 | 2900 | 21.45 | 32 | 4 | 30 | 37 | 45 |
50 | 80 | 24.76 | 44 | ||||||
60 | 75 | 27.23 | 45 | ||||||
ZCQ100-80-160 | 60 | 33.5 | 2900 | 12.16 | 45 | 4 | 18.5 | 22 | 30 |
100 | 32 | 16.14 | 54 | ||||||
120 | 27 | 16.04 | 55 | ||||||
ZCQ100-65-200 | 60 | 54 | 2900 | 22.62 | 39 | 4 | 30 | 37 | 45 |
100 | 50 | 27.23 | 50 | ||||||
120 | 47 | 30.12 | 51 | ||||||
ZCQ100-65-250 | 60 | 86 | 2900 | 39.03 | 36 | 4 | 45 | 55 | 75 |
100 | 80 | 46.35 | 47 | ||||||
120 | 74.5 | 50.72 | 48 |
