Single screw pump is volumetric working principle type pump, mainly working parts is eccentric screw (rotor) and fixed bushings (stator). Because of the special geometric shapes, the two parts form respectively separate sealed chamber, medium uniform flow by axial, internal flow is slow, volume remains the same, the pressure is stable, and will not produce vortices and agitation.
Because the stator adopts various elastic material, this kind of pump has general pumps not competent properties to convery high viscosity fluid containing rigid suspended particles or fiber. Its flow and speed become direct ratio.
Features
◆ Wide application; convey both fluid and non-fluid
◆ Constant fluid conveying process, with little pulsating flow
◆ No stirring of medium in the pump, no extrusion or cutting
◆ Capacity is directly proportional to the speed; variable conveying; used as metering feeding
◆ Adopt elastic stator, with certain abrasion resistance
Conveying Medium
◆ Medium of various viscosities (viscosity is up to 106 mm2/s)
◆ Fluid of various concentrations and dry material through separation dehydration
◆ Various solid particles, fibers and suspended matters
Structures

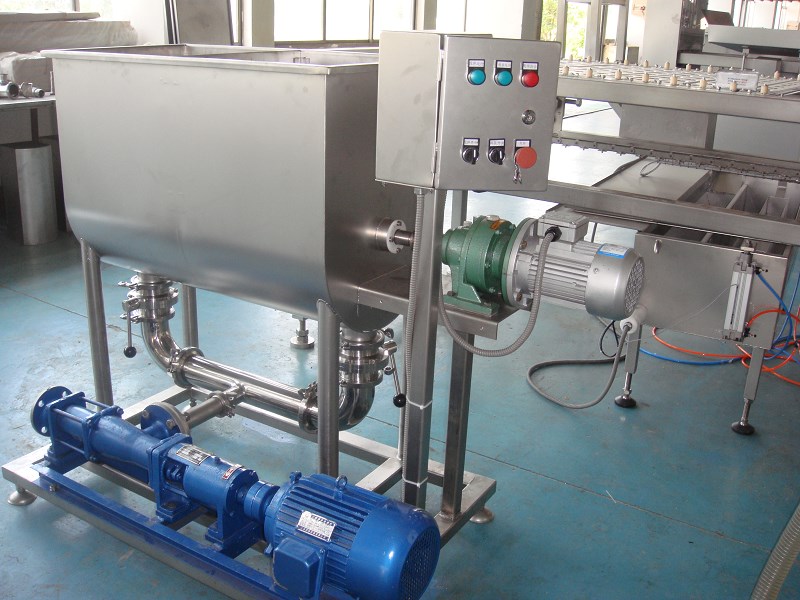

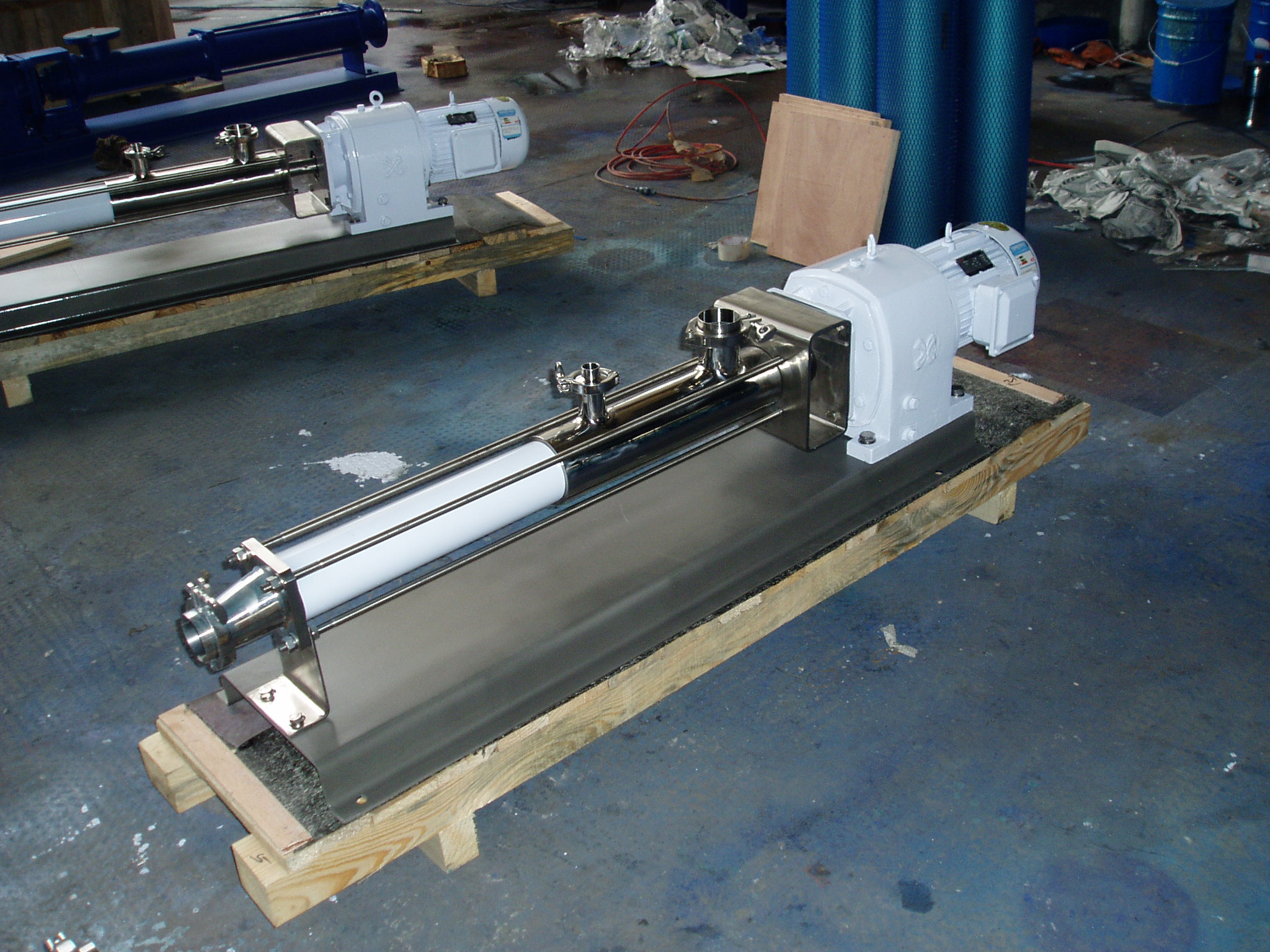

Normal Type Sanitory Type
Feeding Type Braker Type
Several Configurations
◆ Material: Components and parts can be made of different metals and rubber materials
◆ Drive Types: motor reducer drive, variable speed motor drive, mechanical variable speed drive, etc
Single screw pump is volumetric working principle type pump, mainly working parts is eccentric screw (rotor) and fixed bushings (stator). Because of the special geometric shapes, the two parts form respectively separate sealed chamber, medium uniform flow by axial, internal flow is slow, volume remains the same, the pressure is stable, and will not produce vortices and agitation.
Because the stator adopts various elastic material, this kind of pump has general pumps not competent properties to convery high viscosity fluid containing rigid suspended particles or fiber. Its flow and speed become direct ratio.
Features
◆ Wide application; convey both fluid and non-fluid
◆ Constant fluid conveying process, with little pulsating flow
◆ No stirring of medium in the pump, no extrusion or cutting
◆ Capacity is directly proportional to the speed; variable conveying; used as metering feeding
◆ Adopt elastic stator, with certain abrasion resistance
Conveying Medium
◆ Medium of various viscosities (viscosity is up to 106 mm2/s)
◆ Fluid of various concentrations and dry material through separation dehydration
◆ Various solid particles, fibers and suspended matters
Structures
Normal Type Sanitory Type
Feeding Type Braker Type
Several Configurations
◆ Material: Components and parts can be made of different metals and rubber materials
◆ Drive Types: motor reducer drive, variable speed motor drive, mechanical variable speed drive, etc
Model | Capacity | Pressure | Speed | Motor power | Head | (NPSH)r | Inlet | Outlet | Max grain diameter | Max fiber length |
(m3/h) | (MPa) | (r/min) | (KW) | (m) | (m) | (mm) | (mm) | (mm) | (mm) | |
G20-1 | 0.8 | 0.6 | 960 | 0.75 | 60 | 4 | 25 | 25 | 1.5 | 25 |
G20-2 | 1.2 | 1.5 | 120 | |||||||
G25-1 | 2 | 0.6 | 960 | 1.5 | 60 | 40 | 32 | 2 | 30 | |
G25-2 | 1.2 | 2.2 | 120 | |||||||
G30-1 | 5 | 0.6 | 960 | 2.2 | 60 | 50 | 40 | 2.5 | 35 | |
G30-2 | 1.2 | 3 | 120 | |||||||
G35-1 | 8 | 0.6 | 960 | 3 | 60 | 65 | 50 | 3 | 40 | |
G35-2 | 1.2 | 4 | 120 | |||||||
G40-1 | 12 | 0.6 | 960 | 4 | 60 | 80 | 65 | 3.8 | 45 | |
G40-2 | 1.2 | 5.5 | 120 | |||||||
G50-1 | 20 | 0.6 | 720 | 5.5 | 60 | 4.5 | 100 | 80 | 5 | 50 |
G50-2 | 1.2 | 7.5 | 120 | |||||||
G60-1 | 30 | 0.6 | 720 | 11 | 60 | 5 | 125 | 100 | 6 | 60 |
G60-2 | 1.2 | 15 | 120 | |||||||
G70-1 | 40 | 0.6 | 720 | 11 | 60 | 150 | 125 | 8 | 70 | |
G70-2 | 1.2 | 18.5 | 120 | |||||||
G85-1 | 65 | 0.6 | 630 | 15 | 60 | 150 | 150 | 10 | 80 | |
G85-2 | 1.2 | 30 | 120 | |||||||
G105-1 | 100 | 0.6 | 500 | 30 | 60 | 200 | 200 | 15 | 110 | |
G105-2 | 1.2 | 55 | 120 | |||||||
G135-1 | 150 | 0.6 | 400 | 45 | 60 | 250 | 250 | 20 | 150 | |
G135-2 | 1.2 | 90 | 120 |
