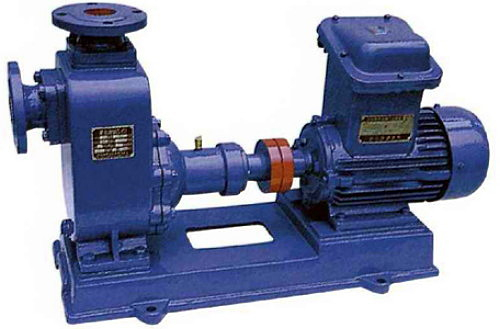

The CYZ Self-priming centrifugal oil pump is the new pump developed based on international technical information. The pump has the ability of simple structure, easy operation, smooth running, easy maintenance, high efficiency, long life, strong ability of self-absorption. No bottom valve needed to install in the pipeline, just to ensure that pump body filled with priming oil before work. It is suitable for the oil tanker or water transportation on the ship, it can also be used as stripping pumps.
Applications
CYZ Self-priming centrifugal pump is suitable for the oil industry, land-based oil depots, tanker as bilge pumps, fire pumps and ballast pumps and cooling water circulation pumps, to transport gasoline, respectively, , kerosene, diesel, jet fuel and other petroleum products and water, sea water, medium temperature -20 ℃ -80 ℃. If using corrosion-resistant mechanical seals and stainless steel material, can also be used in chemical, pharmaceutical, brewing, electroplating, printing and dyeing, paper making, power and mining industry, etc.
The CYZ Self-priming centrifugal oil pump is the new pump developed based on international technical information. The pump has the ability of simple structure, easy operation, smooth running, easy maintenance, high efficiency, long life, strong ability of self-absorption. No bottom valve needed to install in the pipeline, just to ensure that pump body filled with priming oil before work. It is suitable for the oil tanker or water transportation on the ship, it can also be used as stripping pumps.
Applications
CYZ Self-priming centrifugal pump is suitable for the oil industry, land-based oil depots, tanker as bilge pumps, fire pumps and ballast pumps and cooling water circulation pumps, to transport gasoline, respectively, , kerosene, diesel, jet fuel and other petroleum products and water, sea water, medium temperature -20 ℃ -80 ℃. If using corrosion-resistant mechanical seals and stainless steel material, can also be used in chemical, pharmaceutical, brewing, electroplating, printing and dyeing, paper making, power and mining industry, etc.
Model | Discharge mm | Capacity m3/h | Head m | Speed r/min | Power KW | Eff. % |
40YW12-15 | 40 | 12 | 15 | 2900 | 1.5 | 48 |
50YW20-7 | 50 | 20 | 7 | 1450 | 0.75 | 62 |
50YW10-10 | 〃 | 10 | 10 | 〃 | 0.75 | 54 |
50YW15-15 | 〃 | 15 | 15 | 2900 | 1.5 | 51 |
50YW15-20 | 〃 | 15 | 20 | 〃 | 2.2 | 51 |
50YW17-25 | 〃 | 17 | 25 | 〃 | 3 | 53 |
50YW25-32 | 〃 | 25 | 32 | 〃 | 5.5 | 49 |
65YW25-15 | 65 | 25 | 15 | 〃 | 2.2 | 52 |
65YW37-13 | 〃 | 37 | 13 | 〃 | 3 | 60 |
65YW25-28 | 〃 | 25 | 28 | 〃 | 4 | 58 |
80YW40-7 | 80 | 40 | 7 | 〃 | 2.2 | 50 |
80YW29-9 | 〃 | 29 | 9 | 〃 | 2.2 | 48 |
80YW43-13 | 〃 | 43 | 13 | 〃 | 3 | 65 |
80YW40-15 | 〃 | 40 | 15 | 〃 | 4 | 57 |
80YW50-25 | 〃 | 50 | 25 | 〃 | 7.5 | 56 |
100YW80-9 | 100 | 80 | 9 | 1450 | 4 | 62 |
100YW110-10 | 〃 | 110 | 10 | 〃 | 5.5 | 97 |
100YW65-15 | 〃 | 65 | 15 | 〃 | 5.5 | 59 |
100YW100-15 | 〃 | 100 | 15 | 〃 | 7.5 | 70 |
100YW80-20 | 〃 | 80 | 20 | 〃 | 7.5 | 71 |
100YW100-22 | 〃 | 100 | 22 | 〃 | 15 | 61 |
150YW145-9 | 150 | 145 | 9 | 〃 | 7.5 | 63 |
150YW200-10 | 〃 | 200 | 10 | 〃 | 15 | 64 |
150YW160-15 | 〃 | 160 | 15 | 〃 | 15 | 67 |
150YW180-22 | 〃 | 180 | 22 | 〃 | 18.5 | 74 |
150YW150-26 | 〃 | 150 | 26 | 〃 | 18.5 | 72 |
150YW130-30 | 〃 | 130 | 30 | 〃 | 22 | 69 |
150YW200-30 | 〃 | 200 | 30 | 〃 | 37 | 65 |
150YW150-35 | 〃 | 150 | 35 | 〃 | 37 | 63 |
200YW250-11 | 200 | 250 | 11 | 〃 | 15 | 72 |
200YW250-15 | 〃 | 250 | 15 | 〃 | 18.5 | 72 |
200YW400-10 | 〃 | 400 | 10 | 〃 | 22 | 75 |
200YW310-13 | 〃 | 310 | 13 | 〃 | 22 | 71 |
200YW400-13 | 〃 | 400 | 13 | 〃 | 30 | 76 |
200YW250-22 | 〃 | 250 | 22 | 〃 | 30 | 71 |
200YW350-25 | 〃 | 350 | 25 | 〃 | 37 | 73 |
200YW250-35 | 〃 | 〃 | 35 | 〃 | 45 | 69 |
250YW600-9 | 250 | 600 | 9 | 〃 | 30 | 78 |
250YW600-12 | 〃 | 600 | 12 | 〃 | 37 | 76 |
250YW600-15 | 〃 | 600 | 15 | 〃 | 45 | 73 |
Model | Discharge mm | Capacity m3/h | Head m | Speed r/min | Power KW | Eff. % |
40YW12-15 | 40 | 12 | 15 | 2900 | 1.5 | 48 |
50YW20-7 | 50 | 20 | 7 | 1450 | 0.75 | 62 |
50YW10-10 | 〃 | 10 | 10 | 〃 | 0.75 | 54 |
50YW15-15 | 〃 | 15 | 15 | 2900 | 1.5 | 51 |
50YW15-20 | 〃 | 15 | 20 | 〃 | 2.2 | 51 |
50YW17-25 | 〃 | 17 | 25 | 〃 | 3 | 53 |
50YW25-32 | 〃 | 25 | 32 | 〃 | 5.5 | 49 |
65YW25-15 | 65 | 25 | 15 | 〃 | 2.2 | 52 |
65YW37-13 | 〃 | 37 | 13 | 〃 | 3 | 60 |
65YW25-28 | 〃 | 25 | 28 | 〃 | 4 | 58 |
80YW40-7 | 80 | 40 | 7 | 〃 | 2.2 | 50 |
80YW29-9 | 〃 | 29 | 9 | 〃 | 2.2 | 48 |
80YW43-13 | 〃 | 43 | 13 | 〃 | 3 | 65 |
80YW40-15 | 〃 | 40 | 15 | 〃 | 4 | 57 |
80YW50-25 | 〃 | 50 | 25 | 〃 | 7.5 | 56 |
100YW80-9 | 100 | 80 | 9 | 1450 | 4 | 62 |
100YW110-10 | 〃 | 110 | 10 | 〃 | 5.5 | 97 |
100YW65-15 | 〃 | 65 | 15 | 〃 | 5.5 | 59 |
100YW100-15 | 〃 | 100 | 15 | 〃 | 7.5 | 70 |
100YW80-20 | 〃 | 80 | 20 | 〃 | 7.5 | 71 |
100YW100-22 | 〃 | 100 | 22 | 〃 | 15 | 61 |
150YW145-9 | 150 | 145 | 9 | 〃 | 7.5 | 63 |
150YW200-10 | 〃 | 200 | 10 | 〃 | 15 | 64 |
150YW160-15 | 〃 | 160 | 15 | 〃 | 15 | 67 |
150YW180-22 | 〃 | 180 | 22 | 〃 | 18.5 | 74 |
150YW150-26 | 〃 | 150 | 26 | 〃 | 18.5 | 72 |
150YW130-30 | 〃 | 130 | 30 | 〃 | 22 | 69 |
150YW200-30 | 〃 | 200 | 30 | 〃 | 37 | 65 |
150YW150-35 | 〃 | 150 | 35 | 〃 | 37 | 63 |
200YW250-11 | 200 | 250 | 11 | 〃 | 15 | 72 |
200YW250-15 | 〃 | 250 | 15 | 〃 | 18.5 | 72 |
200YW400-10 | 〃 | 400 | 10 | 〃 | 22 | 75 |
200YW310-13 | 〃 | 310 | 13 | 〃 | 22 | 71 |
200YW400-13 | 〃 | 400 | 13 | 〃 | 30 | 76 |
200YW250-22 | 〃 | 250 | 22 | 〃 | 30 | 71 |
200YW350-25 | 〃 | 350 | 25 | 〃 | 37 | 73 |
200YW250-35 | 〃 | 〃 | 35 | 〃 | 45 | 69 |
250YW600-9 | 250 | 600 | 9 | 〃 | 30 | 78 |
250YW600-12 | 〃 | 600 | 12 | 〃 | 37 | 76 |
250YW600-15 | 〃 | 600 | 15 | 〃 | 45 | 73 |
