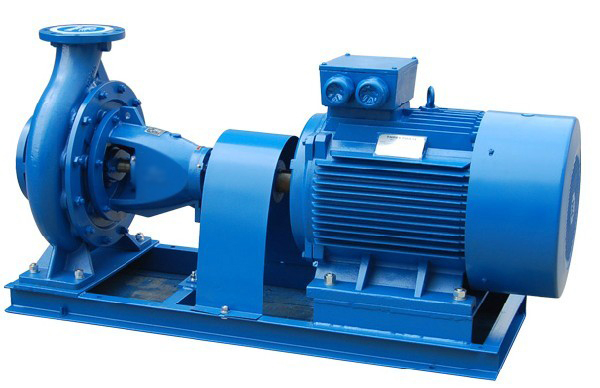

EAD series end suction centrifugal pump completed sets are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
| Bare Shaft • Direct Coupled with Electric Motor or Engine | |
| Design | Performance and dimensions referring to the European standard BS EN733/DIN24255 |

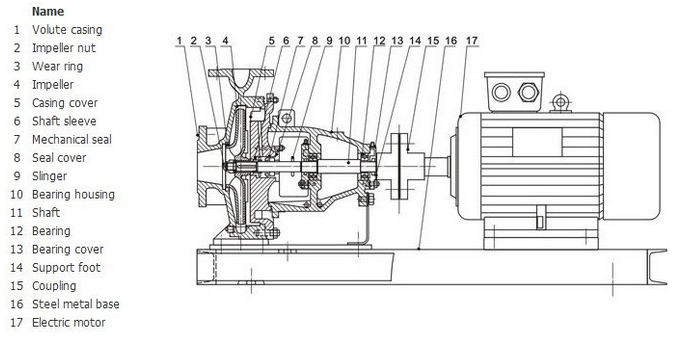

| Structure | Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out |
| DN (mm) | 32 - 250 |
| Flange | DIN2501 standard,ANSI B16.5 Class 150lb optional |
| Casing | Cast Iron standard,Ductile Iron,Stainless Steel optional |
| Impeller | Bronze standard,Cast Iron,Stainless Steel optional |
| Shaft | ASTM420standard, ASTM304, ASTM316, ASTM1045 optional |
| Shaft Seal | Mechanical Seal Standard, Gland Packing optional |
● Applications
1. Heating, ventilation and air-conditioning
2. Fire Protection and Fire Fighting
3. Water circulation
4. Liquid transfer
5. Irrigation
6. Cooling
7. Booster service
