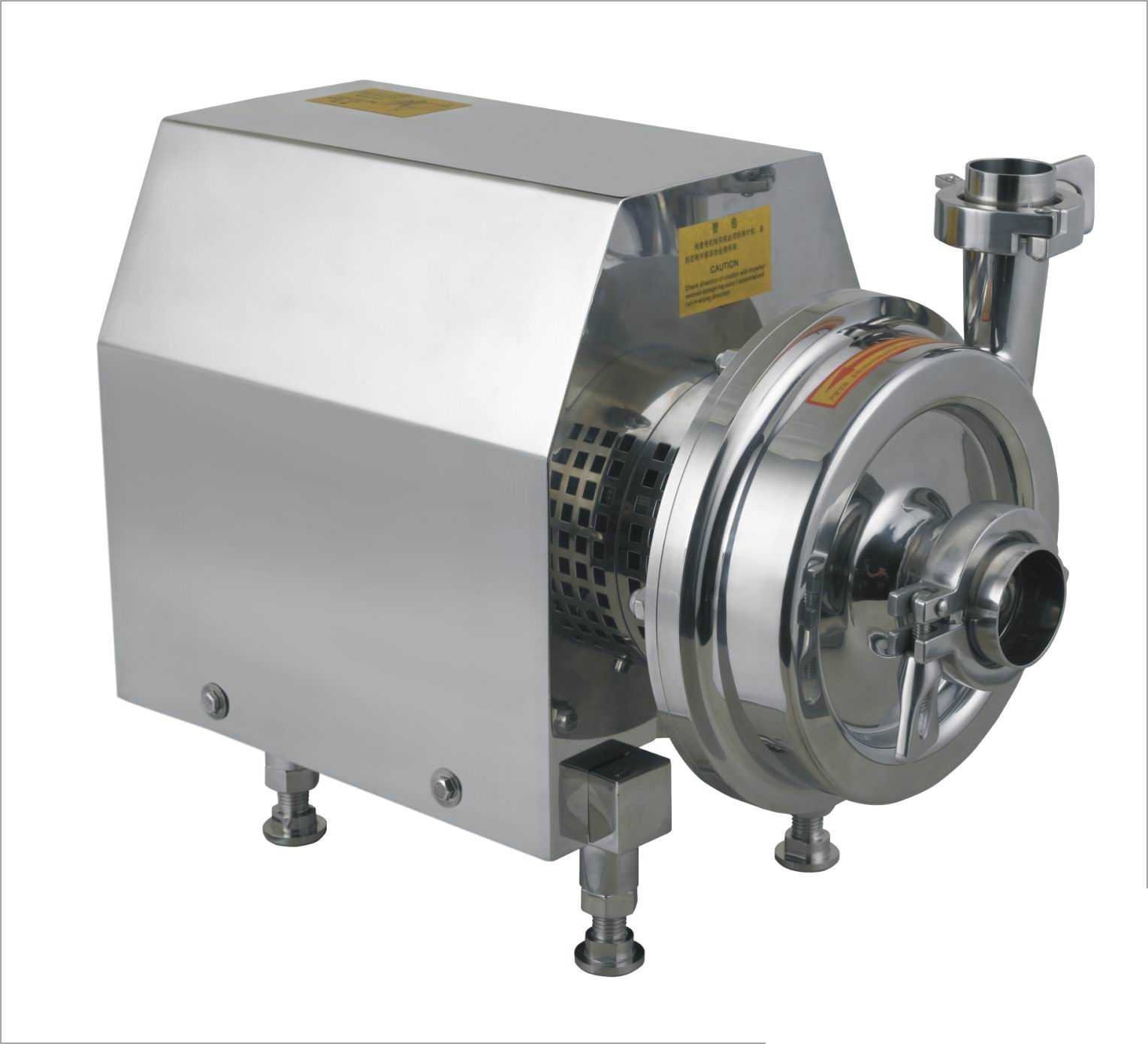

Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

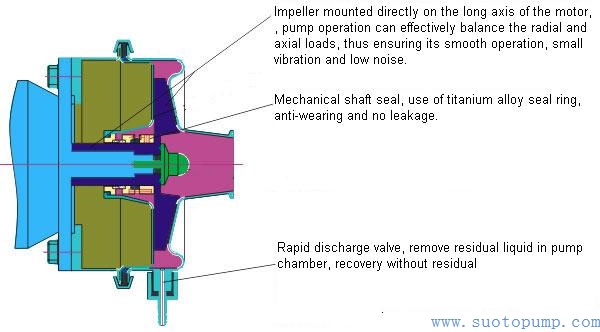

Working principle:
This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Applications
* Drugs: transfusion, distilled water, high pure water, containing particles (3-6 mm) of the medicine liquid leachate.
* Cosmetics: dyes, alcohol, essential oils.
* Beverages: alcohol, liquor, beer, wort, fermentation broth, juice drinks, beverages with particles.
* Dairy: whey, cream, milk, sugar
* Other: Candy industry, baking industry, chemical industry, etc.
Parts in contact with pumped media | AISI 316L or 304 |
Other parts in stainless steel | AISI 304 |
Gaskets (standard) | EPDM (FDA) |
Mechanical seal (standard) | graphite/Sic/EPDM |
Inside surface finishing | Ra < 0.4 um. |
Outside surface finishing | Mirror polished |
Selection Help
* Pump Flow: Using the middle section of the performance curve is appropriate.
* Pump operating temperature: -20-100 ℃ (maximum sterilization temperature of 133 ℃).
* Working environment and the media: to determine whether proof.
* Working conditions: high-low level or horizontal delivery, non-self-priming type.
* Pump Material: 316L and 304 according to requirements of selected medium.
* Pump Sealing material: standard rubber ring is silicone rubber, according to media selection fluorine rubber, EPDM, PTFE, NBR.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Working principle:
This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Applications
* Drugs: transfusion, distilled water, high pure water, containing particles (3-6 mm) of the medicine liquid leachate.
* Cosmetics: dyes, alcohol, essential oils.
* Beverages: alcohol, liquor, beer, wort, fermentation broth, juice drinks, beverages with particles.
* Dairy: whey, cream, milk, sugar
* Other: Candy industry, baking industry, chemical industry, etc.
Parts in contact with pumped media | AISI 316L or 304 |
Other parts in stainless steel | AISI 304 |
Gaskets (standard) | EPDM (FDA) |
Mechanical seal (standard) | graphite/Sic/EPDM |
Inside surface finishing | Ra < 0.4 um. |
Outside surface finishing | Mirror polished |
Selection Help
* Pump Flow: Using the middle section of the performance curve is appropriate.
* Pump operating temperature: -20-100 ℃ (maximum sterilization temperature of 133 ℃).
* Working environment and the media: to determine whether proof.
* Working conditions: high-low level or horizontal delivery, non-self-priming type.
* Pump Material: 316L and 304 according to requirements of selected medium.
* Pump Sealing material: standard rubber ring is silicone rubber, according to media selection fluorine rubber, EPDM, PTFE, NBR.
Flow Medium Parts | AISI304/AISI316L(1.4301/1.4404) |
Without Flow Medium Parts | AISI304(1.4301) |
Outside Surface | Semi bright |
Inside Surface | Polished Ra0.4 |
Product Wetted Seals | EPDM,Silicone,FPM.NBR |
Max.Inlet Pressure | 0.5MPA |
Temperature Range | -10ºC~140ºC |
Noise Level(At 1m) | 60-80dB(A) |
Capacity | 1.5~200ton/hour |
Motor | ABB Motor and China motor,Siemens |
Voltage | 220V,380V,440V,480V,ect |

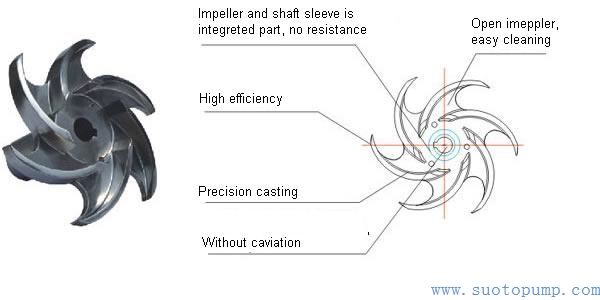

Impeller Type | Closed Impeller,Open Impeller,Semi-Open Type Impeller |
Connection ends | Triclover,butt weld,threaded,union and flange |
Machanical seal(standard | plumbago&silicon carbide |
Flow Medium Parts | AISI304/AISI316L(1.4301/1.4404) |
Without Flow Medium Parts | AISI304(1.4301) |
Outside Surface | Semi bright |
Inside Surface | Polished Ra0.4 |
Product Wetted Seals | EPDM,Silicone,FPM.NBR |
Max.Inlet Pressure | 0.5MPA |
Temperature Range | -10ºC~140ºC |
Noise Level(At 1m) | 60-80dB(A) |
Capacity | 1.5~200ton/hour |
Motor | ABB Motor and China motor,Siemens |
Voltage | 220V,380V,440V,480V,ect |
Impeller Type | Closed Impeller,Open Impeller,Semi-Open Type Impeller |
Connection ends | Triclover,butt weld,threaded,union and flange |
Machanical seal(standard | plumbago&silicon carbide |
